Lithium-ion batteries power everything from phones and power tools to electric vehicles and energy storage systems, yet most people never see how they are actually built. How are lithium-ion batteries manufactured? The short answer: through a tightly controlled chain of chemical, mechanical and electrical processes — raw material preparation, electrode manufacturing, cell assembly, formation, pack assembly and quality testing. As a professional lithium battery manufacturer, UFOPOWER runs every one of these stages in-house, because a battery is only as good as the weakest step in its production line.

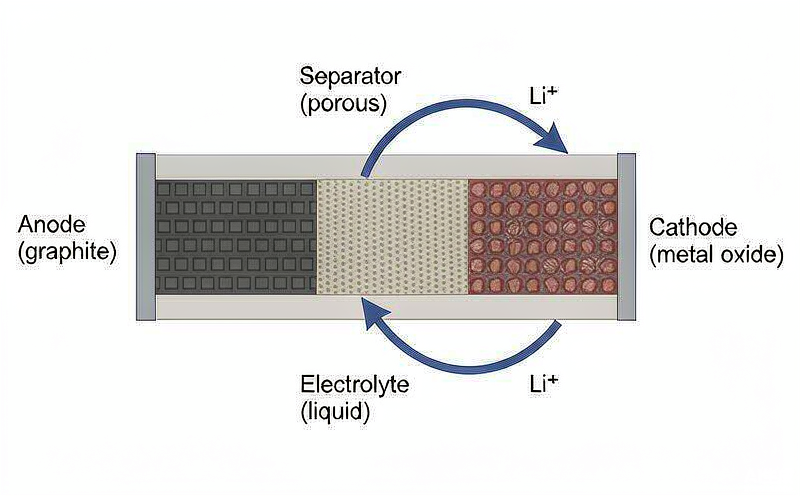

How a Lithium-Ion Battery Works

Before looking at production, it helps to understand the working principle. A lithium-ion battery stores and releases energy by moving lithium ions back and forth between two electrodes — the anode and the cathode. When the battery powers a device, lithium ions travel from the anode to the cathode, creating a flow of electricity. When you charge it, the ions move back to the anode, ready to deliver power again. This reversible movement of ions is exactly what makes a lithium-ion battery rechargeable — and why the quality of each electrode layer matters so much during manufacturing.

The 7 Steps of Lithium-Ion Battery Manufacturing

The table below maps the full production flow, from raw materials to a finished, tested battery pack.

Step 1: Raw Material Extraction & Preparation

Production starts with raw materials. According to the U.S. National Renewable Energy Laboratory, critical raw materials used in manufacturing lithium-ion batteries include lithium, graphite, cobalt and manganese. Inside the cell, the anode is typically built from a carbon-based material such as graphite, while the cathode is made from metal oxides such as lithium, cobalt and manganese.

Step 2: Active Material Synthesis

Material synthesis creates materials with specific properties and structures through chemical or physical means. Base metals are mixed, heated and cooled, with lithium, graphite and binder materials added as needed to produce the electrode material.

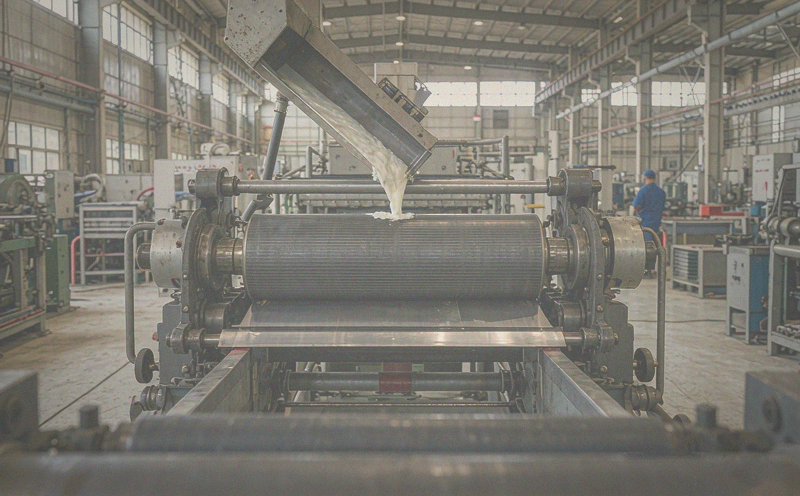

Step 3: Electrode Manufacturing

This stage has three parts: slurry preparation, coating and drying, then calendering. Active materials are mixed with a solvent and binder to form a slurry, which is coated onto a metal foil and dried in a controlled environment to remove the solvent. The coated foils then pass through rolls to reach the target thickness and density — a process called calendering.

The choice of foil is not random. The anode and cathode use different collectors, and that difference shapes how the electrode is processed and how the finished cell behaves.

Step 4: Cell Assembly

Lithium-ion cells come in several formats — cylindrical, prismatic and pouch. Depending on the design, anode and cathode foils are stacked with separators in between, or wound into a jelly roll. This is electrode stacking or winding. The cell is then filled with electrolyte, which enables lithium ions to move between electrodes, and finally sealed to prevent leakage and contamination.

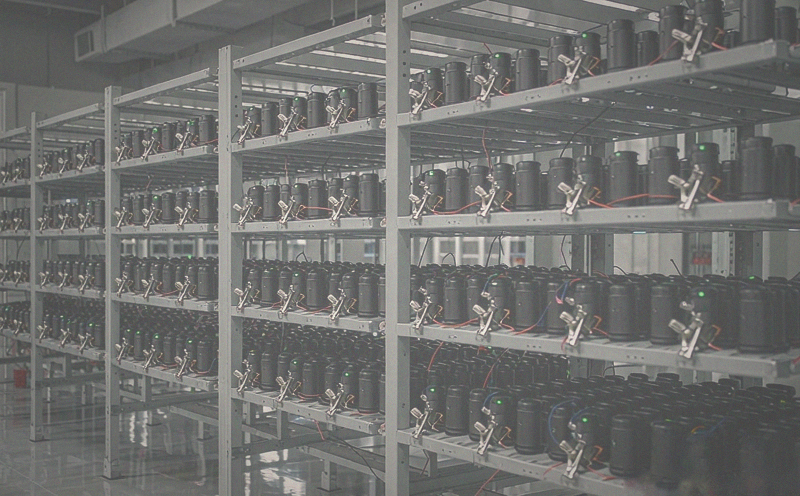

Step 5: Cell Formation & Aging

Formation means charging and discharging new cells to activate the electrolyte and build a solid electrolyte interphase (SEI) on the anode. This step is critical to battery longevity and performance. Cells are then stored through an aging period so their performance characteristics stabilize before they are matched into packs.

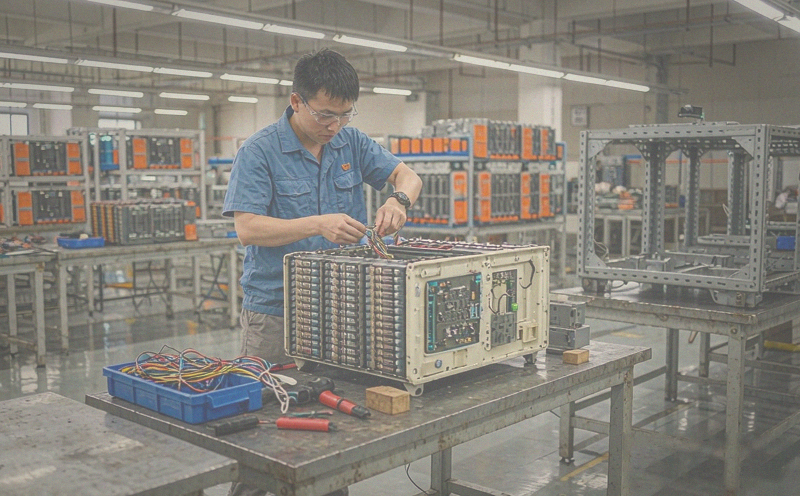

Step 6: Cell Module & Pack Assembly

The high energy density of lithium-ion technology lets cells fit into smaller and smaller spaces, so cells are assembled into modules and packs with almost no dimensional constraints. A battery management system (BMS) monitors and controls performance, protecting the pack and keeping it efficient. This is where a manufacturer's engineering depth shows: matching cells, designing the BMS and packaging the pack for its real application.

Step 7: Quality Control & Testing

Because lithium-ion batteries now appear in mobile devices, electronics, electric vehicles and even infant toys, manufacturing tolerances must be tight. Rigorous quality control runs through the entire production process: material inspections, in-line quality checks during manufacturing, performance testing and safety testing.

Why Manufacturing Precision Decides Battery Performance

A single weak step in the chain is enough to compromise the finished product. Poor slurry mixing or uneven calendering creates inconsistent electrodes; imperfect sealing leads to leakage; skipped formation or aging shows up as unstable performance months later; loose cell matching shortens pack life. That is why serious battery manufacturing is judged not by a single headline specification, but by how tightly every stage is controlled — from the coating room to the final test bench.

Inside UFOPOWER: From Cell to Finished Pack

As a professional lithium battery manufacturer, UFOPOWER brings these seven stages under one roof. Our in-house production covers electrode processing, cell assembly, formation and pack integration, followed by strict quality control and 100% factory testing before any pack ships. The result is factory-direct batteries that hold their voltage, last their rated cycles and match the application they were built for.

• OEM / ODM and custom battery solutions — voltage, capacity, cell format (cylindrical, prismatic, pouch), connector and pack geometry

• In-house production line with strict quality control at every stage

• 100% factory testing of performance and safety before shipment

• Consistent cell matching for balanced, long-lasting packs with integrated BMS

• Factory-direct pricing for brands, integrators and distributors

If you are sourcing a lithium battery for a specific product — from power tools and AGVs to forklifts or energy storage — the right partner is the one who controls the whole process. Send us your requirements and we will build the pack to spec.
