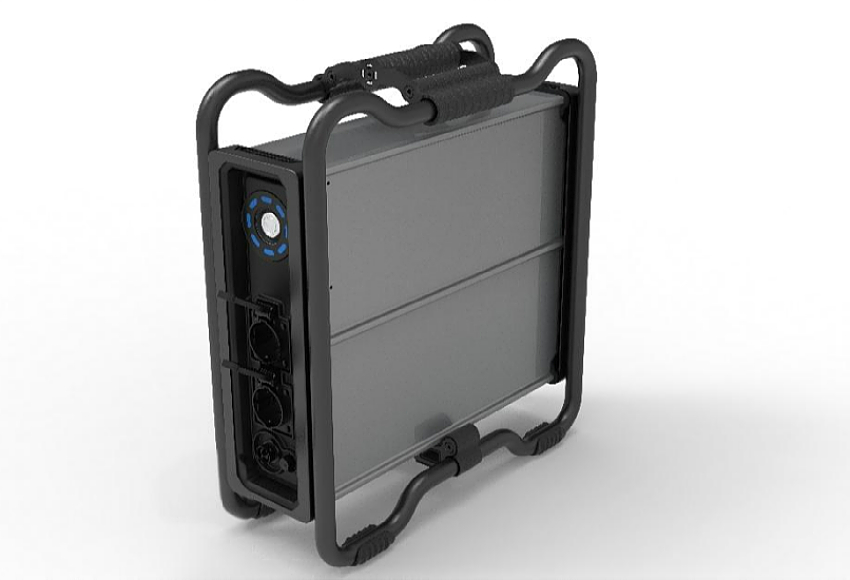

The Micro-Inverter Portable Power Station is available as a standalone unit or as an expandable power platform. Because the AC side is built from redundant micro-inverters connected in series, the system scales from a single portable unit up to split-phase and 3-phase configurations.
| Parameter | Specification |
|---|---|
| Product Type | Portable Power Station (Micro-Inverter Series) |
| Technology | Micro-Inverters Connected in Series with AC Low-Voltage |
| System Topology | All-In-One Integrated Cell, PCS, BMS and EMS |
| Thermal Design | No heatsink, no fan design |
| Peak Output Capability | 500% peak output (high-inrush motor and tool start) |
| Conversion Efficiency | Up to 99% |
| Noise Level | 10 dB(A) ultra-silent |
| Ingress Protection | IP65 waterproof |
| Casing | Collision-resistant |
| Weight | 20 kg lightweight |
| Service Life | Long lifetime |
| Power Expansion | Conveniently expandable to split-phase and 3-phase systems |
| Monitoring | IoT monitoring and GPS positioning |
| Cell Management | Predictive control and active balancing |
| Rated Output Power | – |
| Battery Capacity | – |
| AC Output Voltage & Frequency | – |
| Charging Input | – |
Note: The table lists the core platform specifications of the Micro-Inverter Portable Power Station. Electrical ratings (rated output power, battery capacity, AC output voltage/frequency and charging input) are configured per project and quoted on request. As an OEM/ODM energy storage manufacturer, UFOPOWER can tailor output power, capacity, port layout, AC expansion (split-phase / 3-phase) and enclosure branding to your specification.
The 500% peak output capability is designed for the real starting loads of professional power tools. The following examples show the type of work the platform is engineered to support:
| Power Tool | Rated Power | Typical Work Per Charge |
|---|---|---|

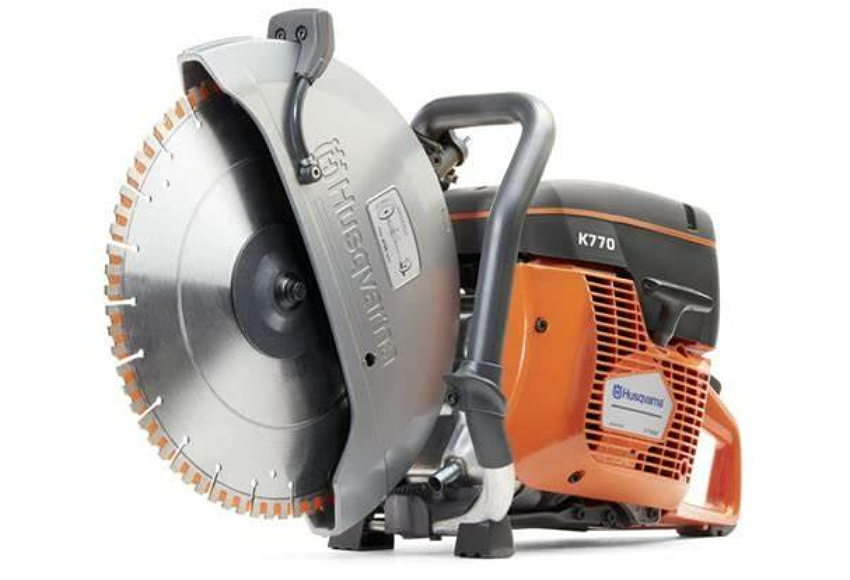

| Cut-Off Saw | 2,700 W | 38 cuts on cast iron pipe 110 mm |
| Arc Welding Machine | – | Up to 89 electrodes 2.5 mm |

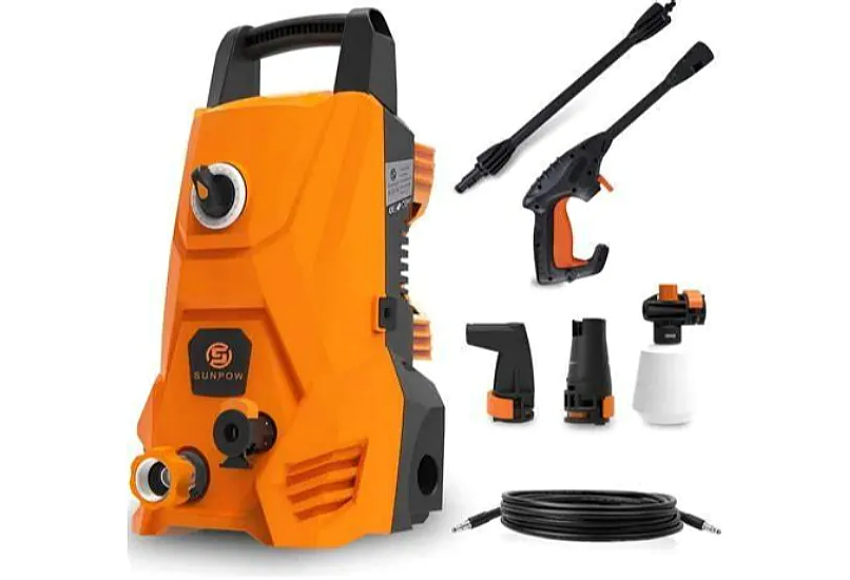

| High Pressure Washer | 3,000 W | ~60 m² cleaned area |

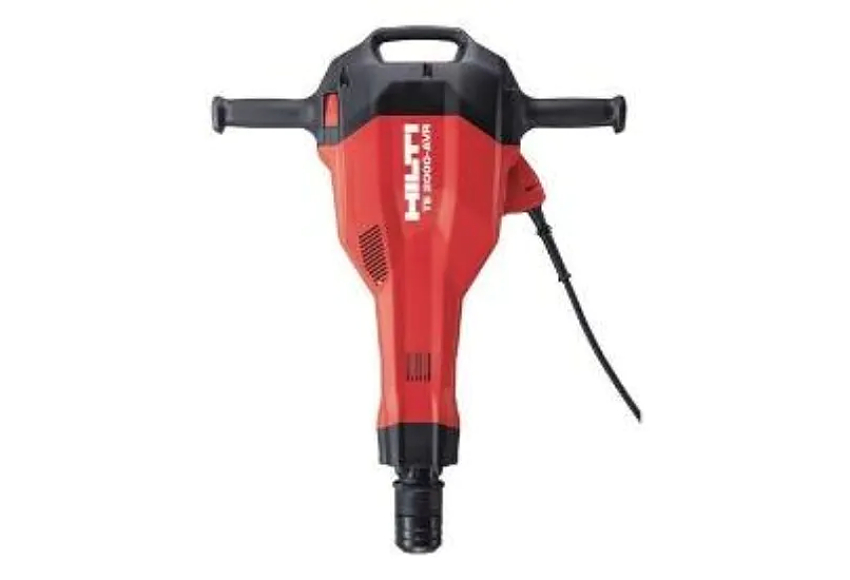

| Jackhammer | 2,200 W | ~7.5 t of concrete slabs demolished, 150 mm |
| Diamond Core Drill | 3,300 W | ~32 holes in concrete, 150 mm core bit, 150 mm deep |
| Magnet Base Drill | 1,400 W | ~223 holes in stainless steel, 35 mm bit, 10 mm |
| Concrete Mixer | 600 W | ~11.5 t of concrete, 180 l barrel |
| Circular Saw | 3,000 W | ~4,100 cuts, 50 × 100 mm lumber |
Note: Tool results are engineering reference data for the platform under standard test conditions; actual runtime varies with tool type, load profile and battery configuration.
Instead of a single bulky inverter, the platform uses micro-inverters connected in series on the AC low-voltage side. This architecture starts high-inrush tools that ordinary battery stations cannot, while keeping conversion losses extremely low.
500% peak output – absorbs the inrush current of motors, compressors and welders without tripping or stalling
Up to 99% conversion efficiency – more of the stored energy reaches the tool, extending usable runtime
Redundant AC-side series design – micro-inverters are connected in a redundant series, improving fault tolerance and reliability
No heatsink, no fan design – a compact, sealed power stage with no moving parts to wear out or clog
Scales to split-phase and 3-phase – expand from a single portable unit to higher-power multi-phase systems
Proprietary DirectSine® and DirectVolt® power conversion technologies – digital control at the core of the micro-inverter chain
Fuel generators are loud, heavy, fume-emitting and need constant maintenance. This portable power station removes every one of those problems, which makes it suitable for indoor, night-time and clean-environment work where generators are simply not allowed.
10 dB(A) ultra-silent – virtually inaudible operation for film sets, live streaming, hospitals and residential areas
IP65 waterproof – sealed against rain, dust and hose spray for outdoor and jobsite use
20 kg lightweight – carryable by one person, with no fuel cans, no lifting equipment
Collision-resistant casing – built to survive transport and rough site handling, with long service life
Zero emissions and no fuel – no exhaust fumes, no CO risk indoors, no fuel storage or transport restrictions
No engine maintenance – no oil changes, spark plugs, filters or carburetor servicing
Behind the sealed enclosure is a deeply integrated electronics platform: <strong>cells, PCS, BMS and EMS are merged into one system</strong> managed by digital control at cell level. This delivers superior safety, longer life and intelligent operation.
All-in-one Cell + PCS + BMS + EMS – deep integration reduces wiring, size and points of failure
Cell-level power conversion and digital control – precise management of every cell for balanced, stable output
Predictive control and active balancing – anticipates load and imbalance, actively equalizing cells to extend lifetime
Super safety and extreme durability – robust protection strategy with a long-service-life design
IoT monitoring and GPS positioning – remote status tracking, fleet visibility and location awareness
Custom OEM/ODM from the UFOPOWER factory – output power, capacity, AC voltage/frequency and phase configuration tailored to your project
