OVERVIEW

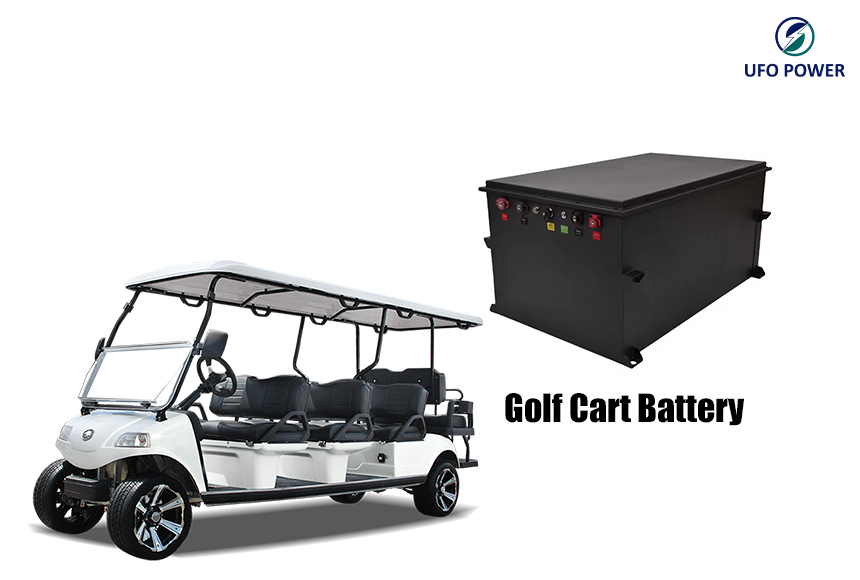

Golf Cart LiFePO4 Battery Series (36V / 48V / 72V)

UFOPOWER's golf cart LiFePO4 battery series is the drop-in lithium replacement for 6V or 8V lead-acid battery banks. Upgrading transforms cart performance: faster acceleration, consistent speed on inclines, and up to 4× longer cycle life. A typical 48V/100Ah pack provides 40–50 km of range on a single charge, with full charge time cut from about 8 hours (lead-acid) to just 2–3 hours. The drop-in design fits standard battery compartments with minimal modification.

As a professional lithium battery manufacturer, UFOPOWER builds every pack with LiFePO4 (LFP) cells on quality-controlled production lines. Available platforms span 38.4V (36V class), 51.2V (48V class), 70.4V and 76.8V (72V class) with capacities from 80Ah to 210Ah, each protected by an intelligent BMS. OEM/ODM customization is available for capacity, BMS parameters, connectors, and communication protocols (CANbus & RS485).

Product Details

The series covers every popular golf cart voltage platform. All models share LiFePO4 chemistry, IP54 protection, and SPCC enclosure.

Model	Rated Voltage	Nominal Capacity	Nominal Energy	Configuration	Standard Cycle Life	Weight	Dimension (L×W×H)
UFO38.4G105	38.4V	105Ah	4032Wh	12S1P	3000	32kg	350×250×260mm
UFO51.2G80	51.2V	80Ah	4096Wh	16S1P	2000	33kg	340×260×260mm
UFO51.2G105	51.2V	105Ah	5376Wh	16S1P	3000	41kg	400×250×260mm
UFO51.2G160	51.2V	160Ah	8192Wh	16S2P	2000	69kg	560×310×260mm
UFO51.2G210	51.2V	210Ah	10752Wh	16S2P	3000	82kg	760×250×260mm
UFO70.4G105	70.4V	105Ah	7392Wh	22S1P	3000	59kg	600×250×260mm
UFO76.8G105	76.8V	105Ah	8064Wh	24S1P	3000	65kg	780×250×260mm

Common Specifications

Parameter	Specification
Cell Chemistry	LiFePO4 (LFP)
Peak Current	500A (10s)
Continuous Current	210A
Charging Temperature	0 – 55°C
Discharge Temperature	-30 – 60°C
Storage Temperature	0 – 45°C
Waterproof Rating	IP54
Enclosure Material	SPCC
Communication	CANbus & RS485 available
Terminal	M8

Key Features

The series delivers 2,000–3,000 standard charge cycles (@25°C, 0.5C charge/discharge, up to 8–12 years of service) versus 400–600 cycles for lead-acid, with packs up to 70% lighter for faster acceleration and easier steering. An 80–100% usable depth of discharge and 90–95% charge efficiency extract far more usable energy per charge, and stable performance from -20°C to 60°C keeps carts dependable in any season. The intelligent BMS handles over-charge, over-discharge, and over-temperature protection, and the packs are maintenance-free – no water to add, no terminals to clean, no corrosion checks.

Applications

The series is the go-to upgrade for private golf carts, golf courses and country clubs, retirement communities, and large residential complexes. It also powers fleet carts and resort or campus shuttle carts where all-day range, fast charging, and low maintenance directly improve operational productivity.

True Drop-In Lead-Acid Replacement

One-for-one swap into the standard battery compartment with minimal modification – and instantly better performance.

Drop-in fit for 36V, 48V, and 72V cart systems 40–50 km range on a single charge (48V/100Ah class) Full charge in 2–3 hours instead of 8 hours for lead-acid Up to 4× longer cycle life than lead-acid

Advantage 2: Full Voltage & Capacity Coverage

Seven standard models span every popular platform, so there is a UFOPOWER pack for almost any cart.

36V class: 38.4V / 105Ah (4032Wh) 48V class: 51.2V / 80Ah–210Ah (4096–10752Wh) 72V class: 70.4V / 76.8V / 105Ah (7392–8064Wh) Custom capacities and voltages available via OEM/ODM

Factory Quality Control & Smart BMS

Manufactured in UFOPOWER's battery factory with LFP cells, strict quality control, and intelligent protection.

LiFePO4 chemistry for excellent thermal stability and safety Intelligent BMS with over-charge, over-discharge, and over-temperature protection IP54 waterproof rating and SPCC enclosure for cart environments CANbus & RS485 communication for smart fleet integration
