UFOPOWER offers custom medical device battery packs for high-reliability applications — from portable ultrasound machines, portable patient monitors and home oxygen concentrators to AEDs and glucometers. Our lithium battery packs feature advanced safety circuits, balancing circuits and a built-in BMS to ensure safety, consistency and long-term reliability. All medical equipment battery packs are manufactured in facilities certified to ISO 13485, ensuring the highest standards of quality and compliance.
Every UFOPOWER medical battery pack is engineered for safety, consistency and long-term reliability in clinical environments.
● NTC Sensor: Temperature monitoring, over-temperature protection and fault diagnosis optimize the charging and discharging process.
● Engineering Plastic Shell: Flame-retardant UL94-V0 casing with added AG antimicrobial silver ions.
● Plastic Ultrasonic Welding: Achieves IP67/IP68 waterproof and dustproof ratings for reliable sealing.
● Smart BMS: Monitoring and management with fault alarm and pre-warning, balanced charging and communication (I²C, SMBus).
● Flexible Cell Options: 18650 / 21700, LiPo and prismatic cells in 1S–4S configurations.
UFOPOWER medical battery packs power a wide range of portable and life-critical medical devices.
● Portable Ultrasound Machine: High-capacity packs for reliable imaging in clinics and the field.
● Portable Patient Monitor: Stable power for continuous vital-sign monitoring.
● Home Oxygen Concentrator: Dependable long-duration power for daily home therapy.
● Infusion Pump: Precise, reliable power for accurate drug delivery.
● AED: Ready-when-needed power with low self-discharge for emergency response.
● Blood Pressure Monitor & Glucometer: Compact, lightweight packs for daily home use.
Medical devices vary from compact wearables to high-power imaging systems. We have categorized our medical battery range into three configurations to help you select the right pack for your device.

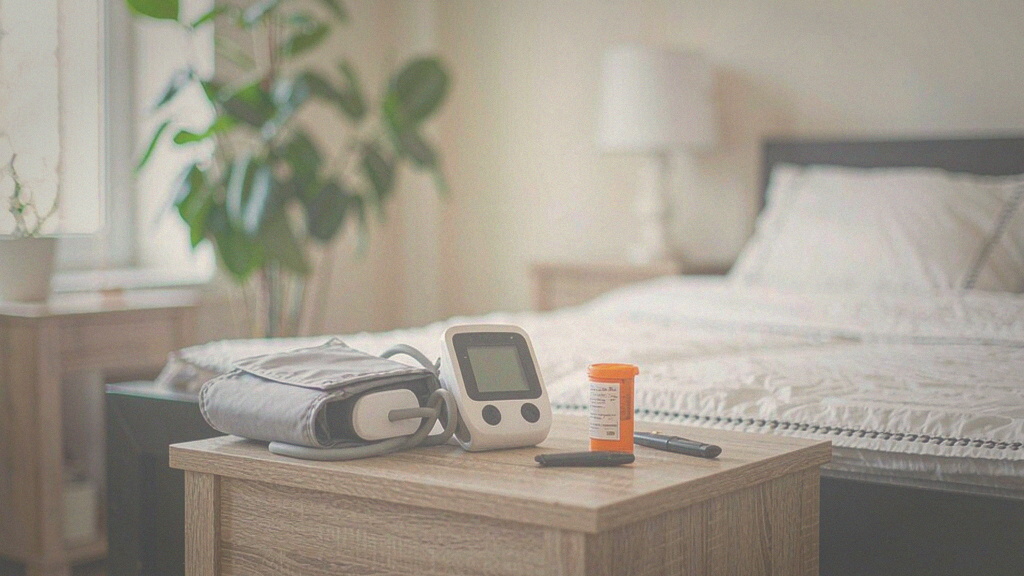

For blood pressure monitors, glucometers and small hand-held devices, UFOPOWER offers compact LiFePO4 pouch cells from 450mAh to 2,000mAh — lightweight, low self-discharge and stable over 2,000–5,000 cycles.
● 450mAh–2,000mAh pouch cells (UFO8218040 to UFO8930085)
● 3.2V nominal, 1C standard / 3C high-discharge options
● Low self-discharge — retains charge when not in use
● Stable chemistry, low risk of fire or explosion

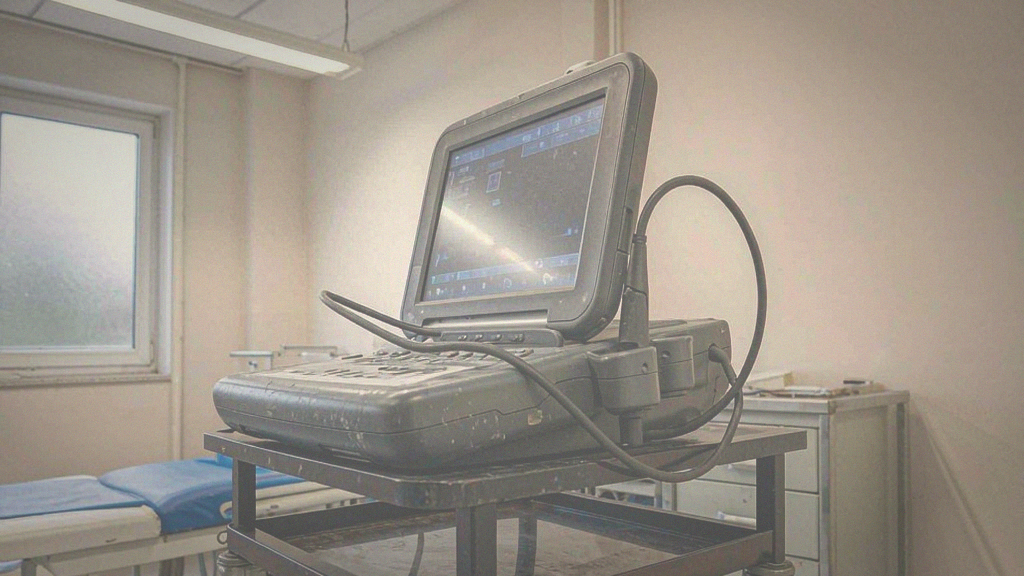

For portable ultrasound machines, patient monitors and infusion pumps, UFOPOWER offers mid-capacity cells from 3,000mAh to 7,500mAh with smart BMS protection and optional -40°C low-temperature performance — reliable power for clinic, ambulance and home use.
● 3,000mAh–7,500mAh cells (UFO4163133 to UFO8074133)
● Optional low-temperature formula down to -40°C
● Smart BMS with balanced charging and fault diagnosis
● IP67/IP68 waterproof options for field devices

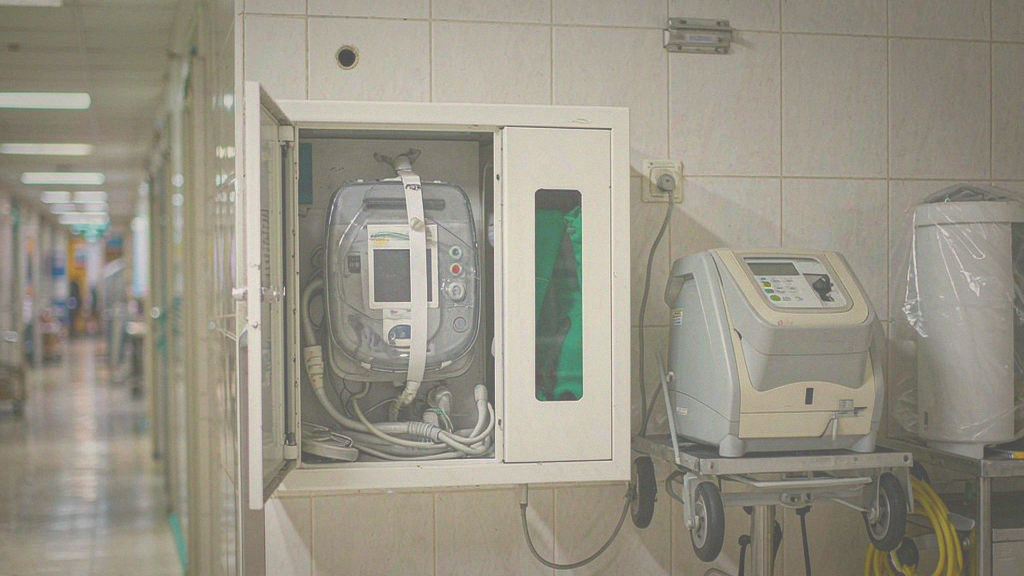

For AEDs, oxygen concentrators and mobile X-ray systems, UFOPOWER high-capacity cells (10,500mAh–25,000mAh) deliver the energy density and discharge capability these life-critical devices demand, with flame-retardant, antibacterial casing options.
● 10,500mAh–25,000mAh cells (UFO76B0136 / UFO93C0246)
● High discharge capability for imaging and AED applications
● Flame-retardant UL94-V0 shell with antibacterial protection
● ISO 13485 certified manufacturing
| Model | Discharge Rate | Nominal Voltage | Capacity (mAh) | Thickness (mm) | Width (mm) | Length (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| UFO8218040 | 1C | 3.2V | 450 | 7.9±0.3 | 17.5±1.0 | 41.5±1.0 | 10.0±1.0 |
| UFO6230048 | 1C | 3.2V | 650 | 5.8±0.2 | 29.5±1.0 | 48.5±1.0 | 15.0±1.5 |
| UFO8329078 | 1C | 3.2V | 1600 | 8.0±0.3 | 28.0±1.0 | 76.5±1.0 | 33.0±1.5 |
| UFO8930085 | 1C | 3.2V | 2000 | 8.6±0.3 | 29.0±1.0 | 85.0±1.0 | 42.0±2.0 |
| UFO4163133 | 1C | 3.2V | 3000 | 3.9±0.2 | 63.0±1.0 | 132.5±1.0 | 64.5±2.0 |
| UFO9549092 | 1C | 3.2V | 4000 | 9.2±0.3 | 48.5±1.0 | 92.0±1.0 | 81.0±3.0 |
| UFO6865132 | 1C | 3.2V | 5000 | 6.5±0.2 | 62.5±1.0 | 129.5±1.0 | 105.0±3.0 |
| UFO8074133 | 1C | 3.2V | 7500 | 7.7±0.3 | 73.5±1.0 | 133.0±1.0 | 151.0±3.0 |
| UFO76B0136 | 1C | 3.2V | 10500 | 7.3±0.3 | 109.0±1.0 | 136.5±1.0 | 219.0±5.0 |
| UFO93C0246 | 1C | 3.2V | 25000 | 9.0±0.3 | 119.0±1.0 | 245.0±1.0 | 506.0±10.0 |
UFOPOWER LiFePO4 pouch cells for medical devices offer 1C standard discharge (3C high-discharge cells available), 2,000–5,000 cycles, low self-discharge and an optional low-temperature formula down to -40°C. For high-power applications, UFOPOWER high-discharge NiMH cells provide 10C–15C discharge with up to 2,500 cycles at 1.2V. Packs are built with a smart BMS (balanced charging, fault diagnosis, I²C / SMBus communication), flame-retardant UL94-V0 antibacterial casing and IP67/IP68 waterproofing options, manufactured under ISO 13485 certified quality systems. Custom configurations from 1S to 4S, 3.7V to 14.8V and 2,000mAh to 10,000mAh are available for OEM/ODM medical projects.
