Drone battery solutions play a critical role in elevating UAV performance by delivering high energy density, lightweight design and stable power output — the key to extended flight time, higher payload capacity and reliable operation in demanding aerial applications. UFOPOWER engineers high-energy-density LiPo and advanced lithium-ion packs with custom BMS integration, so your aircraft stays airborne longer and flies further — from industrial inspection and mapping to agricultural spraying and delivery.
The most critical metric for long-endurance flight is energy density, measured in Wh/kg. UFOPOWER high-energy packs put more watt-hours into a lighter frame — high-performance cells that reach up to 270+ Wh/kg on the 6S high-density platform.
● High Energy Density: Up to 270+ Wh/kg on high-density packs — more flight time per gram of payload.
● 30–50% Longer Flight Times: High-energy LiPo and advanced lithium-ion chemistry extend endurance versus standard consumer-grade packs.
● Burst Power for Extremes: Low internal resistance delivers the massive burst current needed for takeoff, rapid climbing and high-wind operation.
● Custom BMS Integration: Advanced algorithms for State of Charge (SoC) and State of Health (SoH) monitoring.
● High Discharge Stability: Consistent propulsion power even at low capacity levels.
Different sectors require tailored drone battery solutions.
● Photography & Cinematography: Precise telemetry and steady voltage for gimbal stability — the hero shot is never lost to sudden power depletion.
● Agriculture: High-capacity packs carry heavy liquid payloads for crop spraying, with high-vibration resistance and rapid charging cycles.
● Delivery Drones: Configurations that support thousands of cycles to keep operational costs low.
● Industrial Inspection: High-density packs for power line, pipeline and infrastructure inspection missions.
Every airframe has its own power profile — inspection rigs need high energy density, heavy-lift agriculture needs high capacity and high discharge. We have categorized our UAV battery range into three configurations to help you select the right pack for your aircraft.

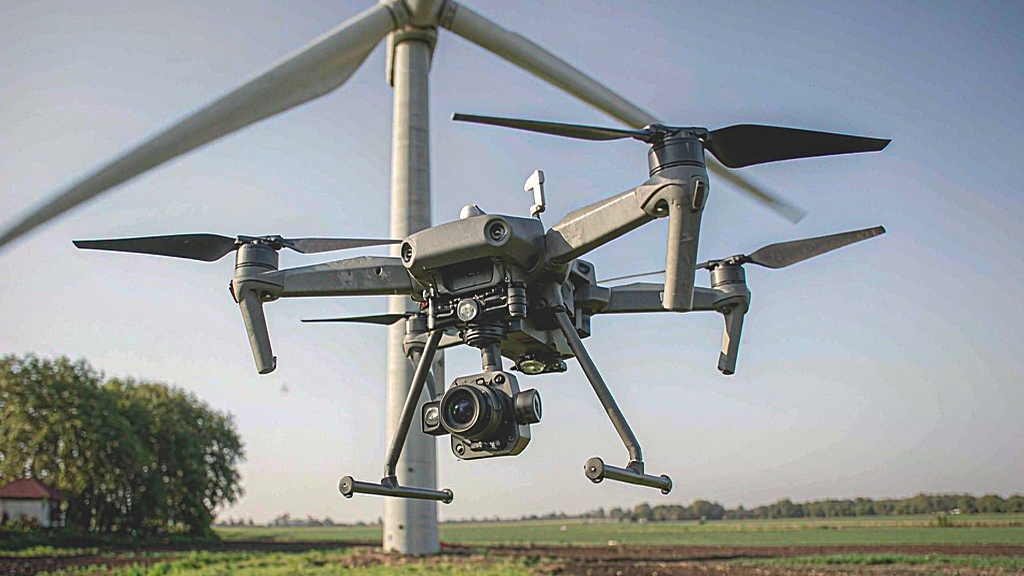

For industrial inspection and general multirotor platforms, the 6S series spans 4,500mAh to 40,000mAh at 22.2V–23.7V with 10C–35C discharge — including high-density models up to 273.71Wh/kg for maximum endurance.
● 6S1P, 22.2V / 22.8V / 23.7V platforms
● 4,500–40,000mAh, 10C–35C discharge
● High-density models up to 273.71Wh/kg
● For inspection, mapping and general multirotor use

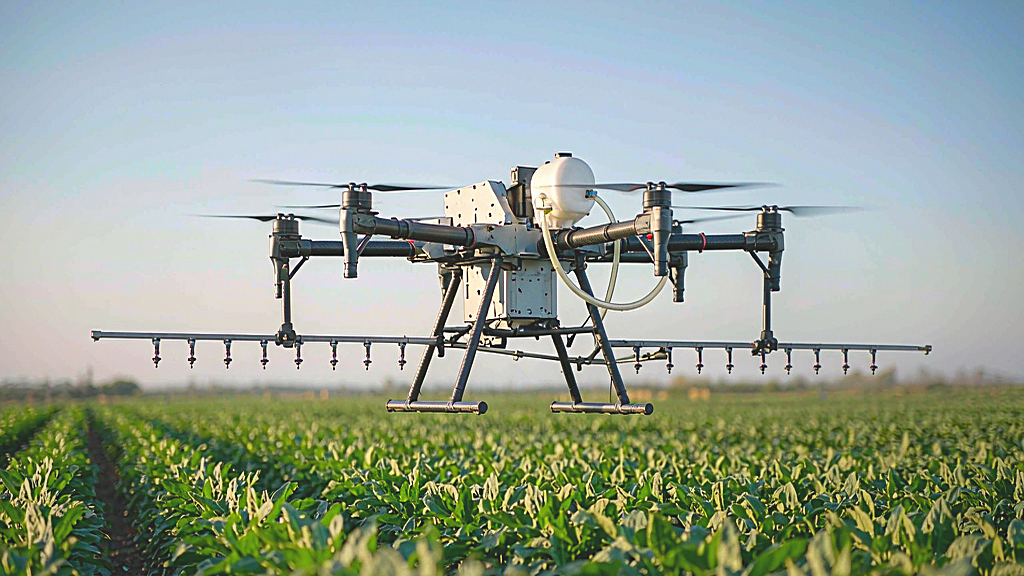

For heavy-lift agriculture and high-voltage platforms, the 12S series delivers 10,000mAh–25,000mAh at 44.4V (up to 1,140Wh) with 30C discharge — including LCO LiHV options at 45.6V for maximum power density.
● 12S1P, 44.4V, 444–976.8Wh standard LiPo
● LCO LiHV: 12S 25Ah, 45.6V, 1,140Wh
● 30C discharge, 2,800–5,000g
● For heavy-lift agriculture and long-endurance platforms

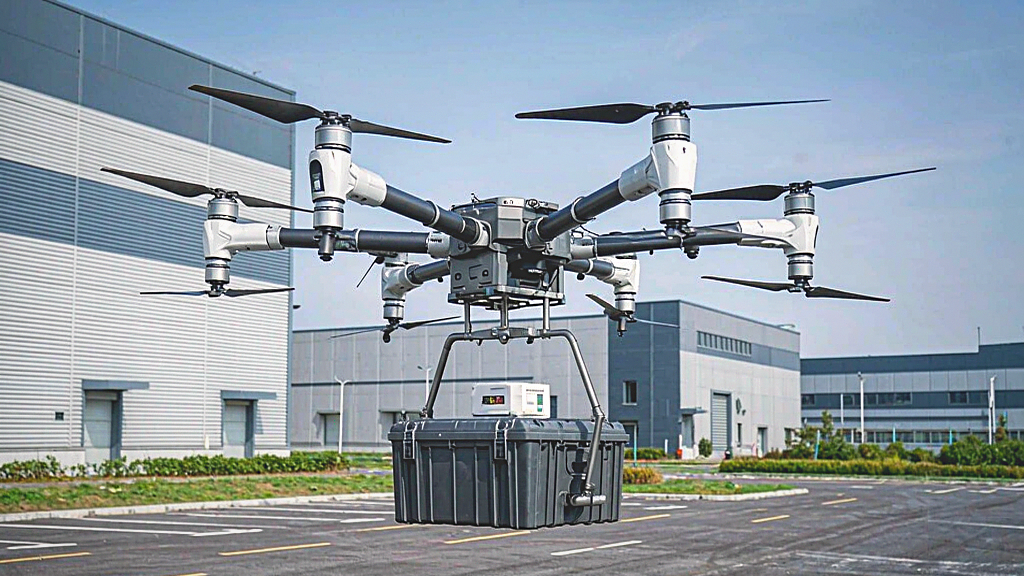

UFOPOWER smart drone batteries communicate directly with the flight controller — real-time cycle counting, automatic cell balancing and precise flight-time calculation give pilots a clear warning long before power reaches a critical state.
● Real-time cycle counting and wear tracking
● Automatic cell balancing for safety
● Precise remaining flight time calculation
● Plus Series and 100kg-class heavy-lift smart platforms
| Series | Model | Capacity | Nominal Voltage | Energy | Discharge | Weight | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|
| 6S | UFO100006S30AX | 10000mAh | 22.2V | 222Wh | 30C | 1360g | 177×66×58mm |
| 6S | UFO160006S30X | 16000mAh | 22.2V | 355.2Wh | 30C | 1974g | 190×76×65mm |
| 6S High-Density | UFO32K06S10X | 32000mAh | 23.7V | 758.4Wh | 10C | 2846g | 51.9×120.5×217mm |
| 12S | Standard LiPo 12S 16Ah | 16000mAh | 44.4V | 710.4Wh | 30C | 4000g | 191×78×130mm |
| 12S LCO LiHV | LCO LiHV 12S 25Ah | 25000mAh | 45.6V | 1140Wh | 10C | 5000g | 206×128×93mm |
UFOPOWER UAV batteries span 4S to 12S platforms with capacities from 4,500mAh to 40,000mAh and discharge rates from 10C to 35C. High-density 6S models reach up to 273.71Wh/kg (266.48Wh/kg on the UFO32K06S10X) for long-endurance inspection and mapping; 12S packs deliver up to 1,140Wh for heavy-lift agriculture. All packs feature low internal resistance for burst power, custom BMS with SoC/SoH monitoring, and smart options with real-time cycle counting, cell balancing and flight-time calculation.
