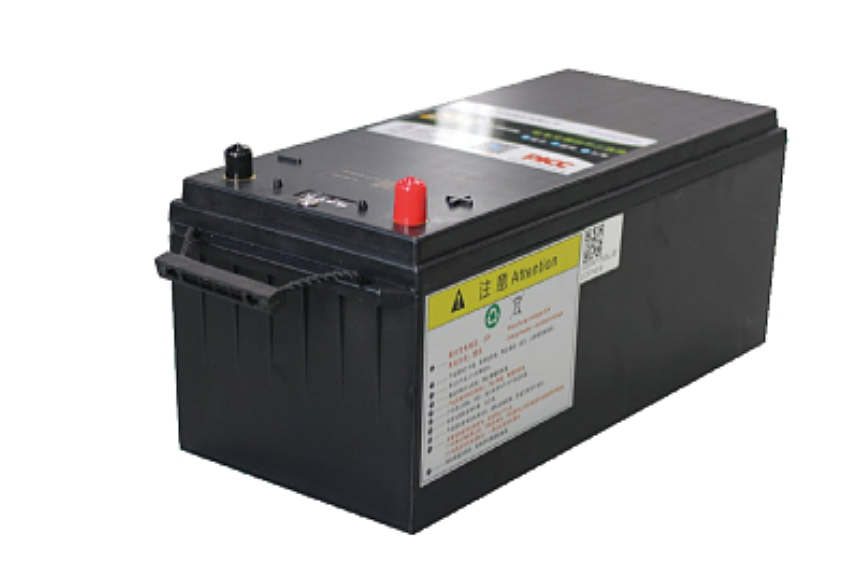

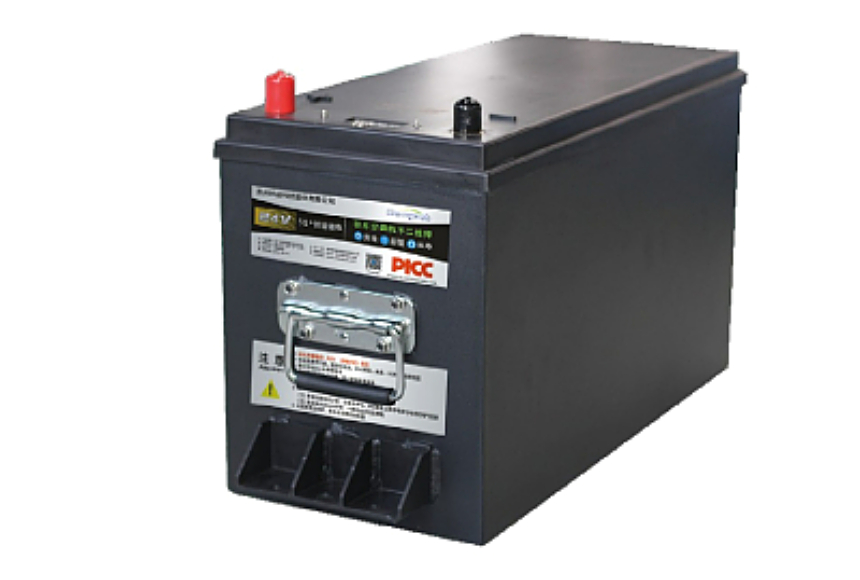

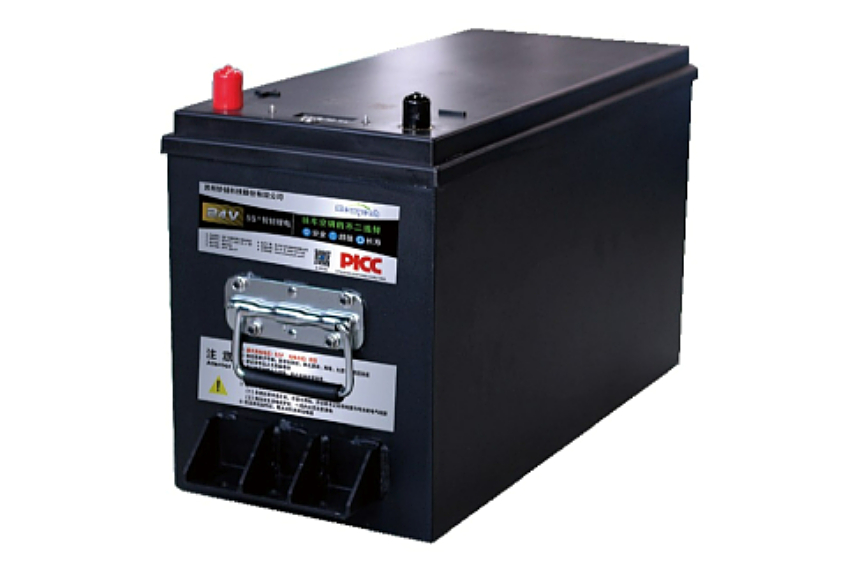

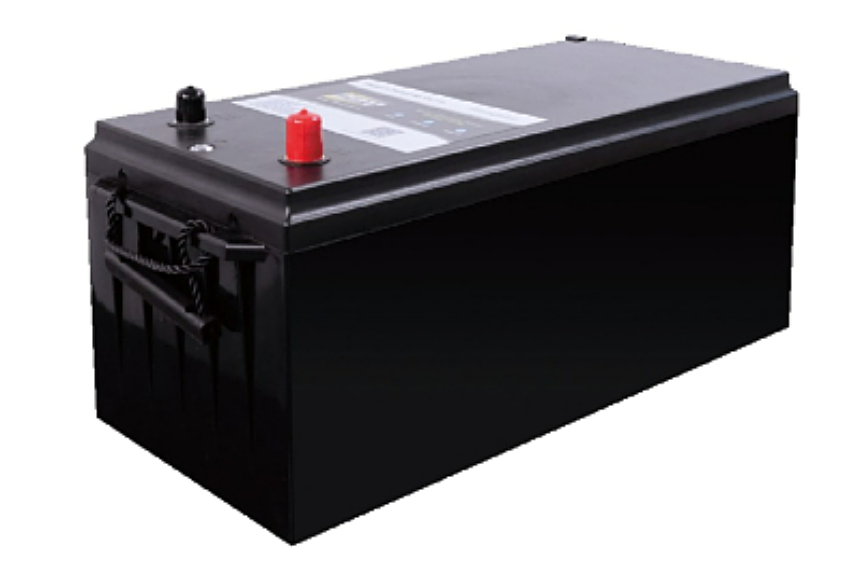

QD24V135Ah 24V 135Ah Smart Lithium Truck Battery

The QD24V135Ah is a 24V 135Ah smart lithium truck battery with 3.45 kWh of usable energy, built for heavy-duty trucks, sleeper cabs and commercial vehicle fleets. Modern trucks carry air conditioning, refrigeration, microwaves, electric stovetops, lighting and many other onboard electronics, and these loads quickly wear down a standard lead-acid battery. By combining a high-quality lithium battery module, an advanced battery management system and a self-heating temperature module in one 2-in-1 unit, the QD24V135Ah delivers both engine starting and eAPU auxiliary power from a single pack.

Compared with the two 12V lead-acid batteries it replaces, this pack is far lighter, holds more usable power and lasts dramatically longer. It is especially suited to medium-duty trucks and mixed fleets that need more auxiliary runtime for overnight cab appliances. As a professional lithium battery manufacturer, UFOPOWER builds every truck battery on controlled production lines with in-house R&D, so each pack can be customized for voltage, capacity, casing and BMS configuration with full OEM/ODM support.

Product Details

Specification	QD24V135Ah
Model	QD24V135Ah
Battery Type	Smart lithium starter + eAPU battery
Rated Voltage	24 V
Battery Capacity	135 Ah / 3.45 kWh
Operating Voltage Range	25–28.5 V
Maximum Charge Voltage	32 V
Maximum Cranking Current	2400 A
Maximum Continuous Discharge Current	160 A
Maximum Continuous Charge Current	160 A
Operating Temperature Range	-40 ~ 65 °C
Cycle Life	2000+ cycles
Communication / Connectivity	CAN / Bluetooth
Weight	26.3 kg
*Dimensions (LWH)*	510220200 mm
Waterproof Rating	IP67

All models share the same 24V platform, working voltage range and smart features, so the QD24V135Ah can be specified alongside the rest of the series to standardize a mixed fleet.

2000+ Cycles and 90% Depth of Discharge

Lead-acid batteries have a depth of discharge of only about 50% and roughly 200 charge cycles, so discharging them too deeply wears them out fast. The QD24V135Ah is engineered for long, deep service instead.

• 2000+ charge cycles at 100% depth of discharge – around ten times the life of a typical lead-acid battery • 90% usable depth of discharge, close to double the usable power of a lead-acid battery of the same amp-hour rating • 1 smart lithium battery replaces up to 10 pairs of lead-acid batteries over its service life • Automatic power-saving mode reserves enough charge for engine starting, so drivers never need a jump start

Winter-Proof Starting with Automatic Self-Heating

Cold weather drains lead-acid cranking power and can leave a truck stranded. The QD24V135Ah keeps starting reliably in the coldest conditions.

• Full starting function at temperatures as low as -40 °C • Built-in temperature module self-heats automatically after a failed cold crank and quickly warms the battery • When charging below 5 °C the pack self-heats to 10 °C and then stops heating automatically • Up to 2400 A maximum cranking current for dependable cold starts • Wide operating range of -40 °C to 65 °C for year-round fleet use

Lightweight, Drop-in and Smart-Connected

The QD24V135Ah replaces a pair of lead-acid batteries with one compact, connected pack that is easy to install and monitor.

• About 3/4 the size and 1/3 the weight of an equivalent lead-acid battery – this model weighs just 26.3 kg • IP67 waterproof rating and 6G vibration resistance protect the pack on rough roads and in bad weather • CAN and Bluetooth connectivity with a mobile app for individual cell voltage, temperature, alerts and status • Smart BMS with overcharge, over-discharge, overload, temperature and short-circuit protection • Contains no lead, mercury or cadmium – a longer-lasting, more sustainable power source for trucking fleets
